| Weight | 590 lbs |
|---|---|
| Dimensions | 42 × 78 × 51 in |

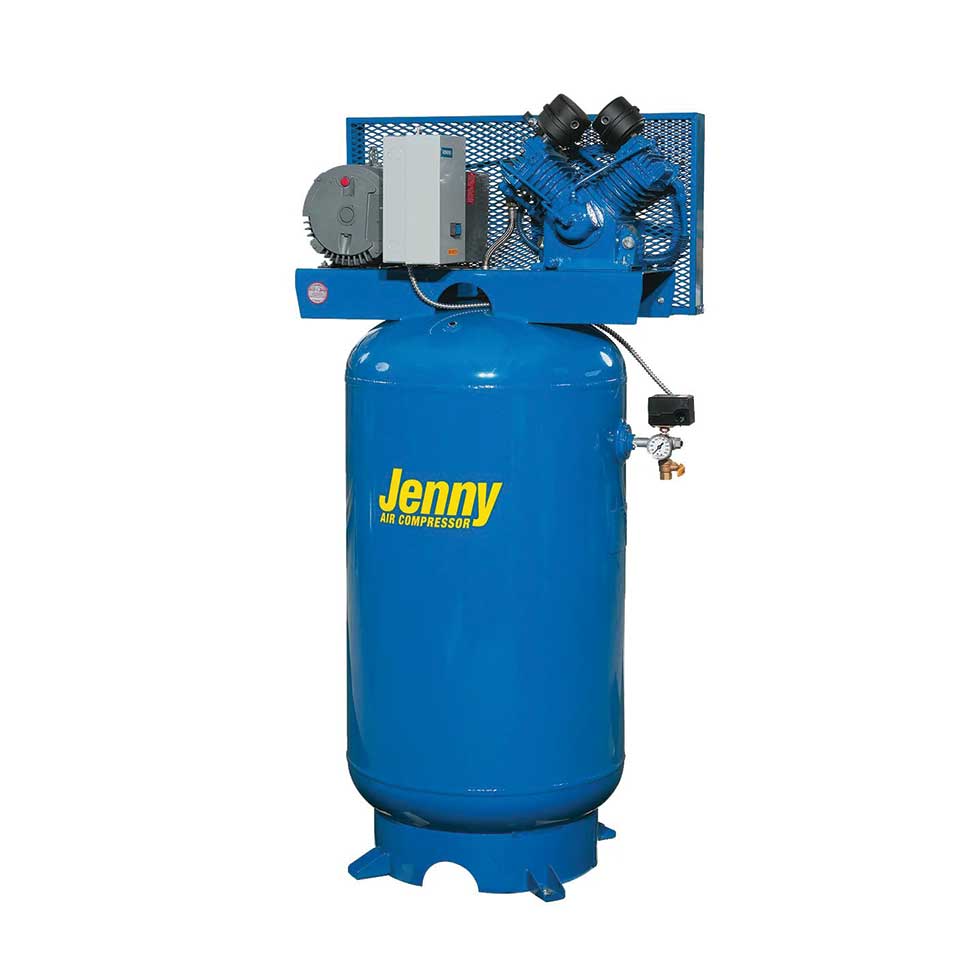

| Model | GT3B-80 |
| Compressor Horsepower | 3 |
| Horsepower Range | 1 – 4.5 HP |
| Compressor Tank Size | 80 |
| Tank Size Range | 60-80 Gallon |
| Voltage | 200/3/60, 230/1/60, 230/3/60, 460/3/60, 575/3/60 |
| Compressor CFM | 13.4 |
| Compressor CFM Range | Up to 14.9 |
| Compressor PSI | 145-175 |
| Brand | Jenny Compressors |
- Call Us Anytime: +27 (0) 1 178-12-322
Standard Features
- Heavy-duty single or two stage cast iron compressor pump – Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty belt guard
- Tanks are powder coated and ASME certified
- 60 gallon tanks and larger are ASME National Board certified
- Protectively mounted fittings
- Manual tank drain(s)
- Large canister intake filter with replaceable filter elements
- Special unloading valves to assist in motor starting
- Tank gauge
- Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 145-175 PSI (two stage)
- Magnetic starter is included on all 5HPand larger units
- Industrial/Commercial grade UL Listed electric motor
- Thermal overload motor protection
- Alternator and magnetic starter are standard on all duplex models
